TouchStar TS3300 Android Tablet
Overview
The TouchStar TS3300 is built with three key design principles in mind: durability, safety and ease of use.
We know things get dropped, so the TS3300 can take a beating and still perform. That’s why every single component is housed in an ultra-shock-absorbent rubber matrix. No external boot or bumper – its rugged from the inside out.
Suitable even for the most rigorous use in the most extreme conditions, the TS3300 provides full protection against dust, water and oil ingress and is fully compliant with the ATEX IECEx directive, allowing safe use even in potentially explosive environments.

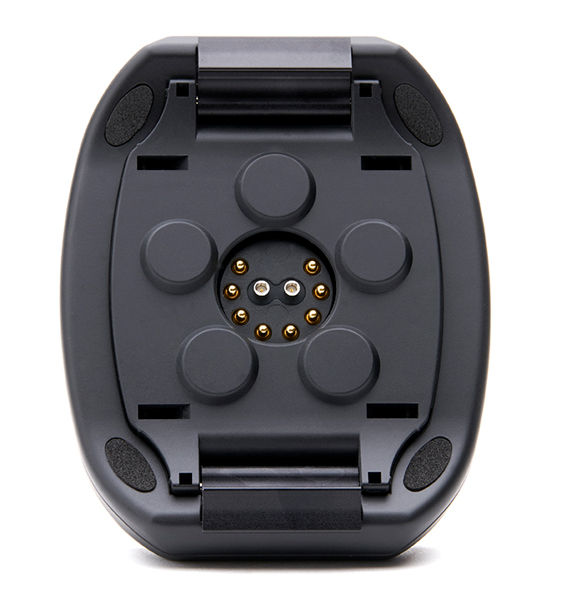

Unique magnetic cradle for the ultimate in docking & quick release (with automatic lock facility).
TouchStar’s ground-breaking magnetic cradle provides unparalleled ease of use. Simply touch the tablet to the cradle to dock and lock. This innovation provides a rapid transition between in-cab and handheld use, optimising performance and eliminating connectivity issues and potential damage.
The TS3300 also utilizes front and rear-facing cameras and a glare proof 7” high-resolution screen, suitable for use with gloves. Slimmer, smarter and stronger than its predecessors, the TouchStar TS3300 is leading a revolution in rugged tablet technology.
Key Features
- Tough rugged design to standard EN 60721-3-5
- In Vehicle or portable
- Innovative magnetic cradle
- Large high-resolution touch screen
- High resolution imager and camera
For full technical specification click on the 'DOWNLOADS' section above right.
TouchStar’s ground-breaking magnetic cradle provides unparalleled ease of use. Simply touch the tablet to the cradle to dock and lock. This innovation provides a rapid transition between in-cab and handheld use, optimising performance and eliminating connectivity issues and potential damage.
The TS3300 also utilizes front and rear-facing cameras and a glare proof 7” high-resolution screen, suitable for use with gloves. Slimmer, smarter and stronger than its predecessors, the TouchStar TS3300 is leading a revolution in rugged tablet technology.
Key Features.
- Tough rugged design to standard EN 60721-3-5
- In Vehicle or portable
- Innovative magnetic cradle
- Large high-resolution touch screen
- High resolution imager and camera
For full technical specification click on the 'DOWNLOADS' section above right.
TouchStar’s ground-breaking magnetic cradle provides unparalleled ease of use. Simply touch the tablet to the cradle to dock and lock. This innovation provides a rapid transition between in-cab and handheld use, optimising performance and eliminating connectivity issues and potential damage.
The TS3300 also utilizes front and rear-facing cameras and a glare proof 7” high-resolution screen, suitable for use with gloves. Slimmer, smarter and stronger than its predecessors, the TouchStar TS3300 is leading a revolution in rugged tablet technology.
Key Features..
- Tough rugged design to standard EN 60721-3-5
- In Vehicle or portable
- Innovative magnetic cradle
- Large high-resolution touch screen
- High resolution imager and camera
For full technical specification click on the 'DOWNLOADS' section above right.
TouchStar TS3300 Specification
MECHANICAL
Dimensions: 220mm (W) x 33.5mm (D) x 135MM (H)
Weight: 765g
ENCLOSURE
High density silicone / Polycarbonate composite
Impact resistant, flame retardant, ATEX specification
Internal silicon mounted chassis for maximum impact absorption
OPERATING SYSTEM
Android 6.0.1
DISPLAY
7” 1024 x 600, 24bit Colour TFT, Anti-Glare, 16:9 Ratio
LED Backlit
Direct Sunlight Readable IPS
CAPACITIVE TOUCHSCREEN
High Impact Polycarbonate
Signature capture
Multi-Touch
PROCESSOR
CPU: - Freescale i.MX6 800MHz – 1GHz
TYPE: - Cortex -A9 MPCore
MULTIMEDIA
Graphics Accelerated 2D and 3D
1080p30 H.264 Decode, 720p30 H.264 Encode
MEMORY / STORAGE
2GB Low Power DDR2 RAM
16GB eMMC – Standard – 64GB Option
EXPANSION/CONNECTIVITY
Micro SD Card, Micro SIM Card Socket
USB-C (Via Cradle)

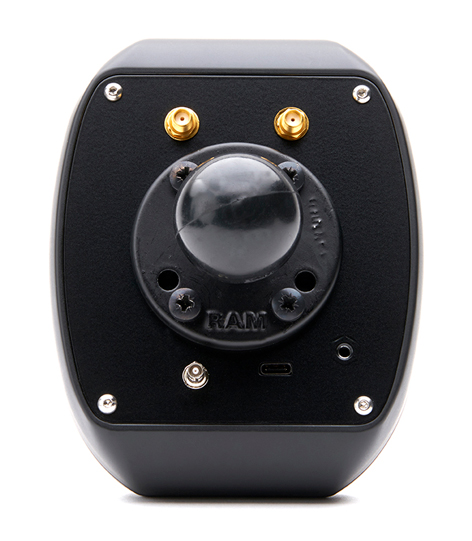

CRADLE INTERFACE
Magnetic Guided Docking
5V Power Input
USB-C Connector
External 3G/4G Antenna Socket
External GPS Active Antenna Socket
INTERNAL RECHARGEABLE BATTERY
Lithium Ion 3.7V, 4060mAh, 30Wh
NETWORKING & COMMUNCATION
WIFI: - 802.11a/b/g/n + MIMO (2.4GHz/5GHz)
BLUETOOTH: - 4.0/BLE, Hands Free Audio Interface Support
MOBILE BROADBAND: - 3G/4G WWAN (HSPA+/UMTS/EDGE/GPRS/GSM) (data and voice)
DEDICATED GPS
Multi-GNSS receiver,
GPS, Glonass, Galileo and QZSS,
Hot Start < 1Ss – Cold Start < 35s, NMEA
AUDIO
Digital Microphone – Front Facing
Dual High Power Speaker – Front Facing
CAMERA FRONT AND REAR FACING
Front - 5M Pixel auto focus
Rear – 5M Pixel auto focus
CAMERA FLASH
LUXEON Flash – Rear (only on non-ATEX build)
BARCODE SCANNER/IMAGER
1D/2D Barcode Scanning Engine
All 1D/2D barcode formats supported
OPERATING TEMPERATURE
-20⁰C to +55⁰C
ENVIRONMENTAL
IP65
SHOCK TESTING
1.5M Drop in all orientations on to concrete
STORAGE TEMPERATURE
-40⁰C to +70⁰C
ACCESSORIES
Desk Top PSU Charger and USB-C Cable
Magnetic Guided Docking Cradle
APPROVALS
CE / FCC
ATEX / IECEx II 3 G Ex ic IIC T4 Gc
