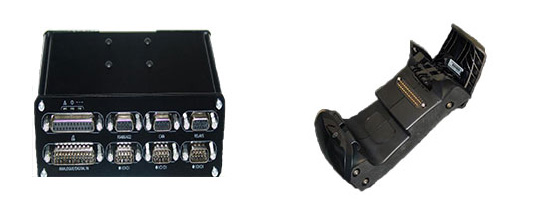

IN-VEHICLE INFRASTRUCTURE

Intelligent cradles and hubs are in-vehicle devices that act as the fulcrum point for information flowing between various devices and sensors on the vehicle and the on board computer. Cradles offer the secondary function of optimally charging the on board computer, ensuring it’s readiness should it be required for out-of-vehicle mobile use. Should you require full technical specification or advise as to the context in which these devices should be used, please contact your TouchStar representative at enq@touchstar.co.uk

TOUCHPC QUICK-RELEASE CRADLE

Key Features

  • Connects to extensive range of devices (printers, telemetry, axle weighing, flow meters, temperature gauges etc.)
  • Optical, parallel and RS232 ports
  • Suitable for dashboard installation
  • Powers directly from vehicle
  • Pass through I/O - USB Host, Ethernet, CANBUS 2.0B
  • 3G/4G & GPRS external antenna
  • Provides power to on board computer (no need for additional supply)
In-Vehicle Infrastructure

TOUCHPC SMART HUB

Key Features

  • Multiplexes a single serial port into an array of input & output channels
  • 3 x 9 pin RS232 (up to 115200 baud)
  • 1 x RS485 (up to 115200 baud half-duplex)
  • Optional 1 x RS422 (full duplex)
  • 4 x 0 - 3.3V differential analogue inputs
  • 4 x 0 - 3.3V digital pulse frequency inputs
  • 4 x 30V 1A NO/NC Volt Free Relay Contacts
  • Pass through I/O - USB Host, Ethernet, CANBUS 2.0B
  • Provides power to on board computer (no need for additional supply)
