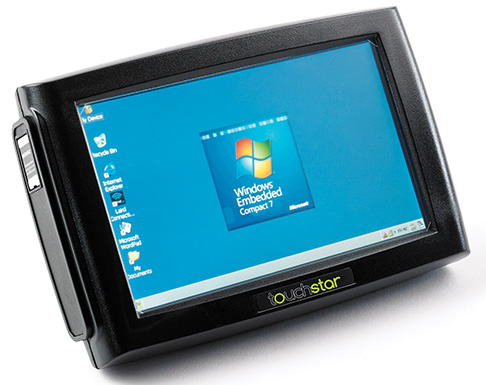

TouchStar TS3000

The TouchStar TS3000 is a 'Tour de force' in both design and ingenuity. Suitable even for the most rigorous use in the most extreme conditions, the TouchStar TS3000 provides full protection against dust, water and oil ingress.

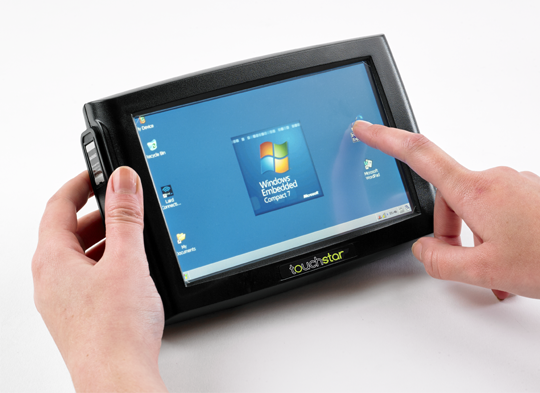

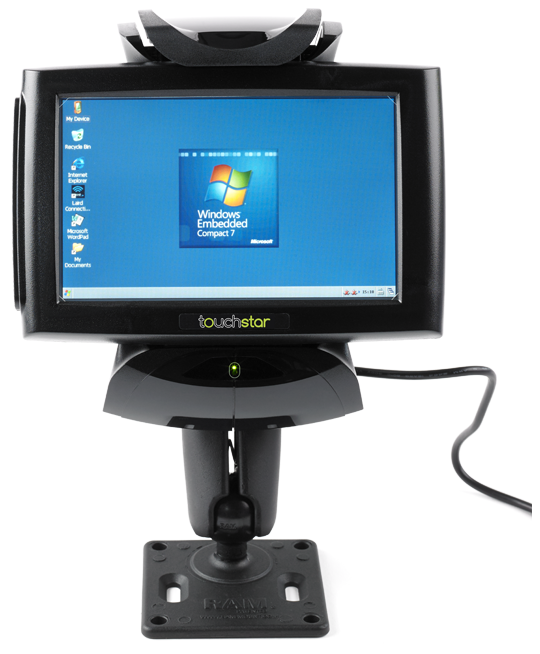

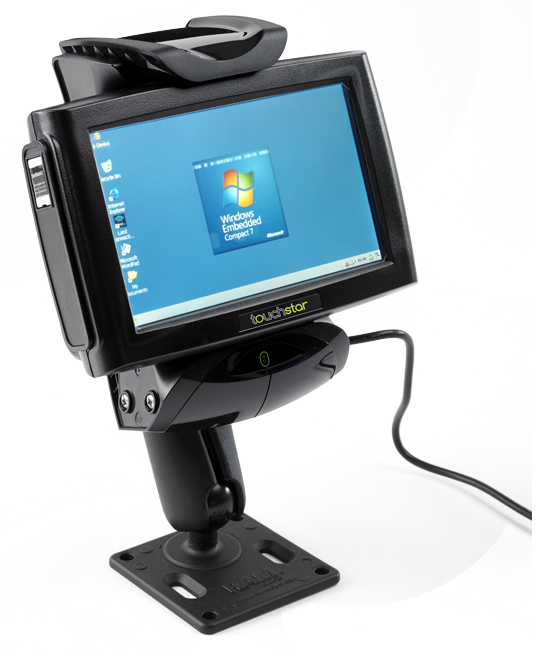

Whilst designed to be vehicle mounted, the TouchStar TS3000 utilises an innovative quick-release mechanism allowing the user to detach it from the vehicle and switch smoothly and easily to a mobile mode of operation.

The integration of the powerful 3G HSPA radio technology combines with the dynamic data collection capabilities of the high resolution imager, 3 mega pixel camera and high-speed 1GHz processor to deliver startling productivity and efficiency gains.

Key Features
  • Tough rugged design, built for purpose
  • Vehicle mounted or portable
  • Large high resolution touch screen
  • High resolution imager and camera
TouchStar TS3000



Dimensions – 200mm (W) x 45mm (D) x 130mm (H)
Weight – 900g
Case – Impact resistant, flame retardant
Case Material – UV stabilised polycarbonate
Internal Chassis – Mounted on rubber shock absorbers

Display Specification

7” Colour TFT, Anti-Glare, 16:9 Ratio, Wide 16:9 WVGA
800 x 480 pixels, LED Backlit, Direct Sunlight Readable


High Impact Polycarbonate,
Resistive – Glove operable – Signature capture

Audio Specifications

High Power Speaker

Performance Specification

Processor – TI OMAP 800MHz - 1GHz

Memory / Storage Specifications

512MB NAND Flash
512MB Low Power DDR RAM

Power Specification

9 to 26V DC, 580mA (typical @ 12V) - 1700mA

Communication and Interface Ports

2 x Micro SD Card,
SD Card – SDIO, USB 2.0 OTG, SIM Card Socket

Internal Battery Backup

Single Lithium Ion cell, 1200mAh, 4.6Wh

Removable Rechargeable Battery

Main Battery Removable 7.4V 4200mAh, 31Wh

Cradle Interface

USB 2.0 Host, RS232 - 9pin (TX, RX, CTS, RTS, DTR, DSR,
CD, RI), CAN Bus, Ethernet 10/100Base-T, Microphone
input, Speaker/Headset output, HSPA connector for external
antenna (switched), GPS connector for external antenna
(switched), Cradle Charge Detect, Power Input 10.25V


802.11a/b/g/n (2.4GHz/5GHz)

GPS Module Performance

Multi-GNSS receiver, GPS, Glonass, Galileo, QZSS,
Hot Start < 1Ss - Cold Start < 35s, NMEA

3G HSPA Module – Mobile Broadband

HSPA+ 7.2 Mbps downlink - 5.7 Mbps Uplink


Bluetooth 2.1 + EDR, Hands Free Audio Interface support

Rear Camera

3M Pixel



Expansion Port

Additional RS232 RX, TX, RTS, CTS

Scanner/Imager Options

Imager 1D - 2D

Operating System

Microsoft Windows Embedded Compact 7,
Application Support Package, Full Dialler Application –
Bluetooth, Full Range of Mobile Applications

Operating Temperature

-20˚C to +50˚C

Storage Temperature

-30˚C to +70˚C


1.5m drop onto Concrete




4 Gang Battery Charger, In-Vehicle Cradle & Cable
assemblies, Expansion Hub & Cable assemblies,
Smart Hub & Cable assemblies
